Description

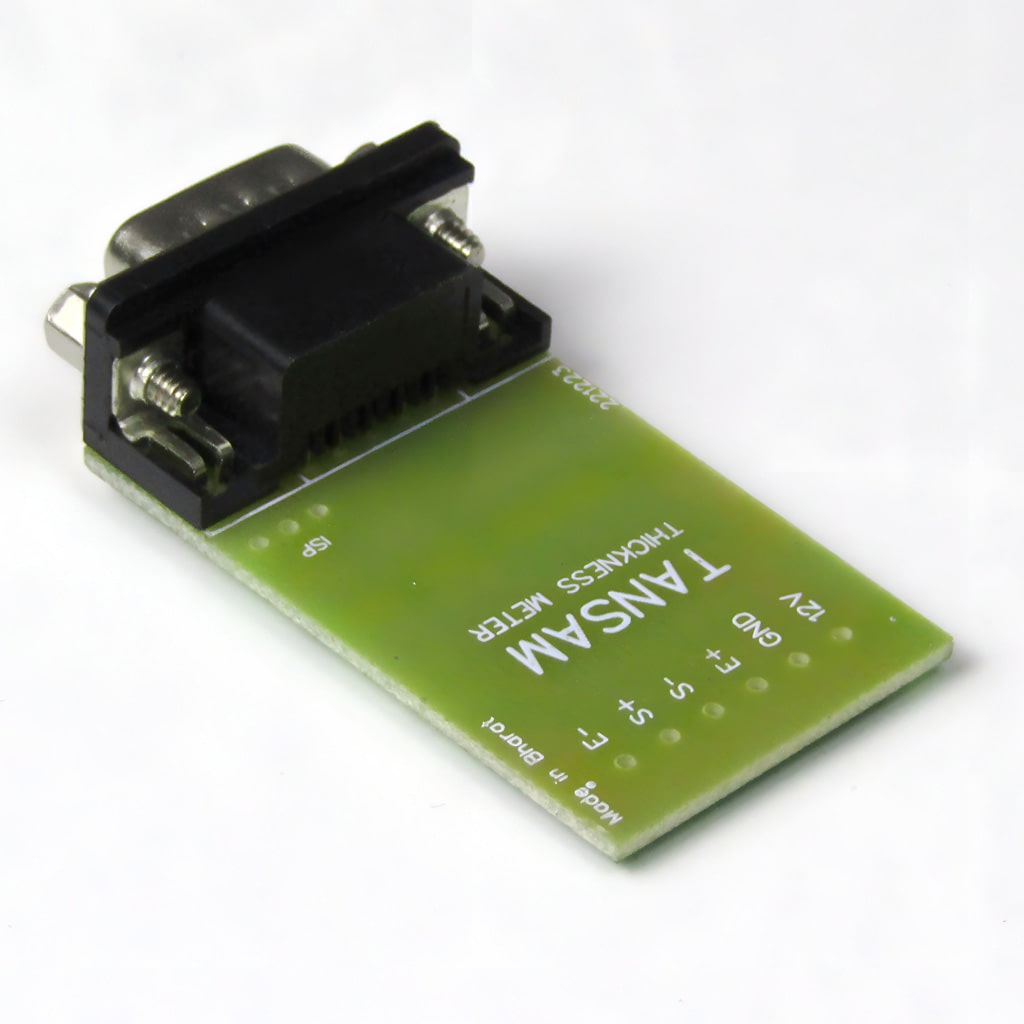

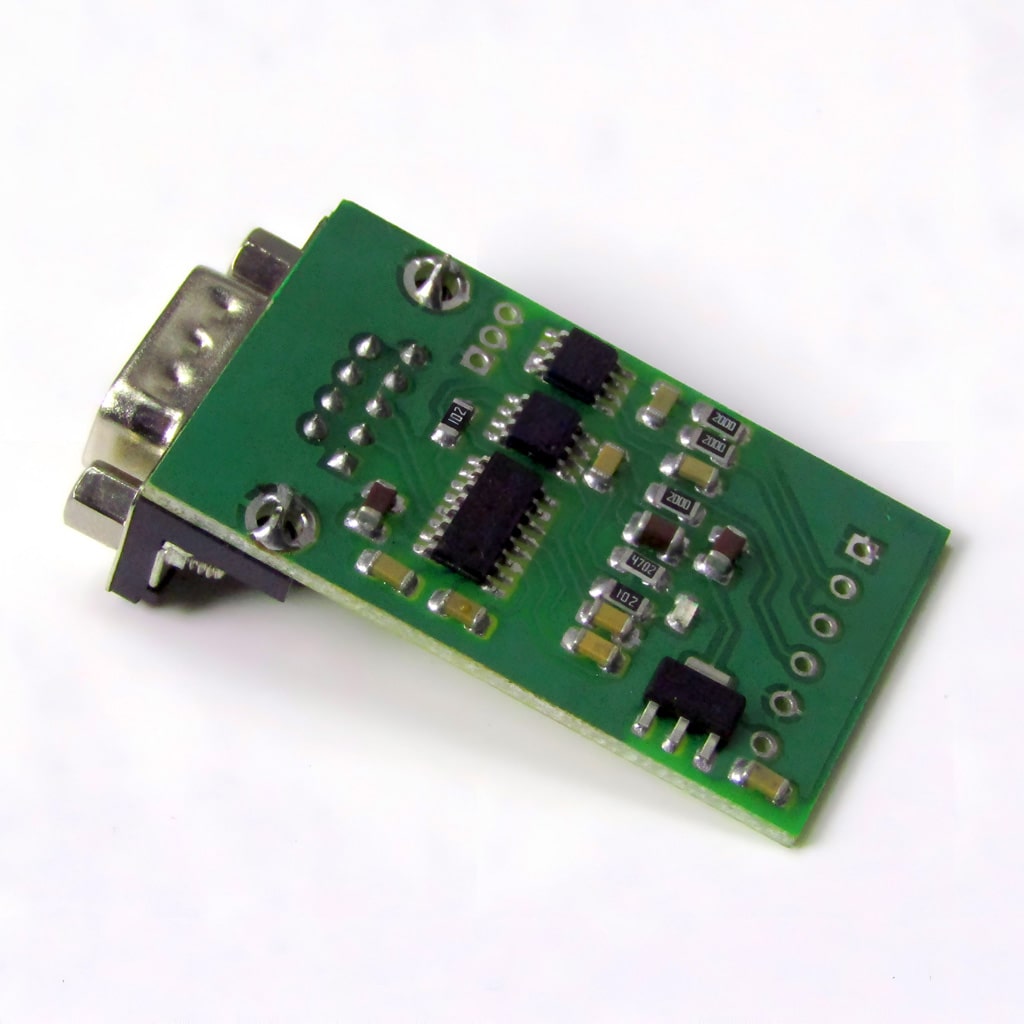

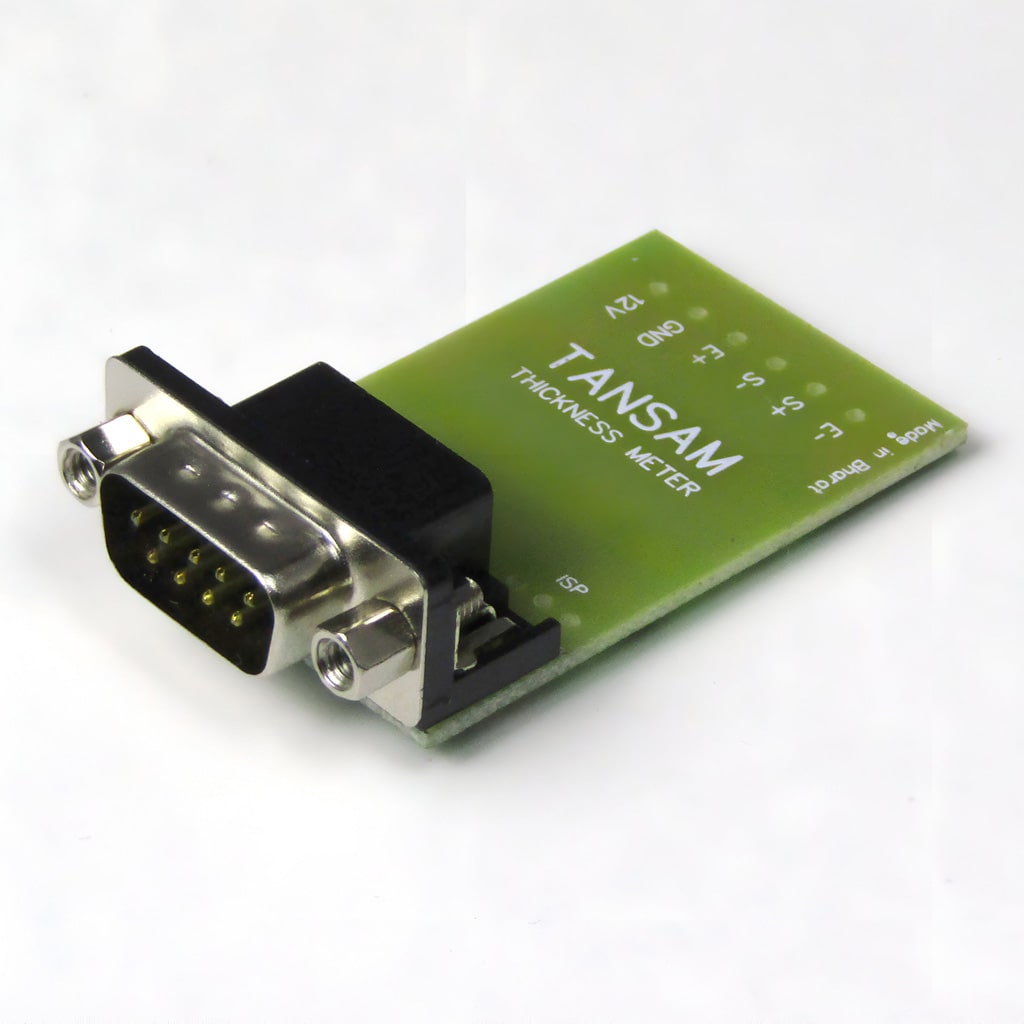

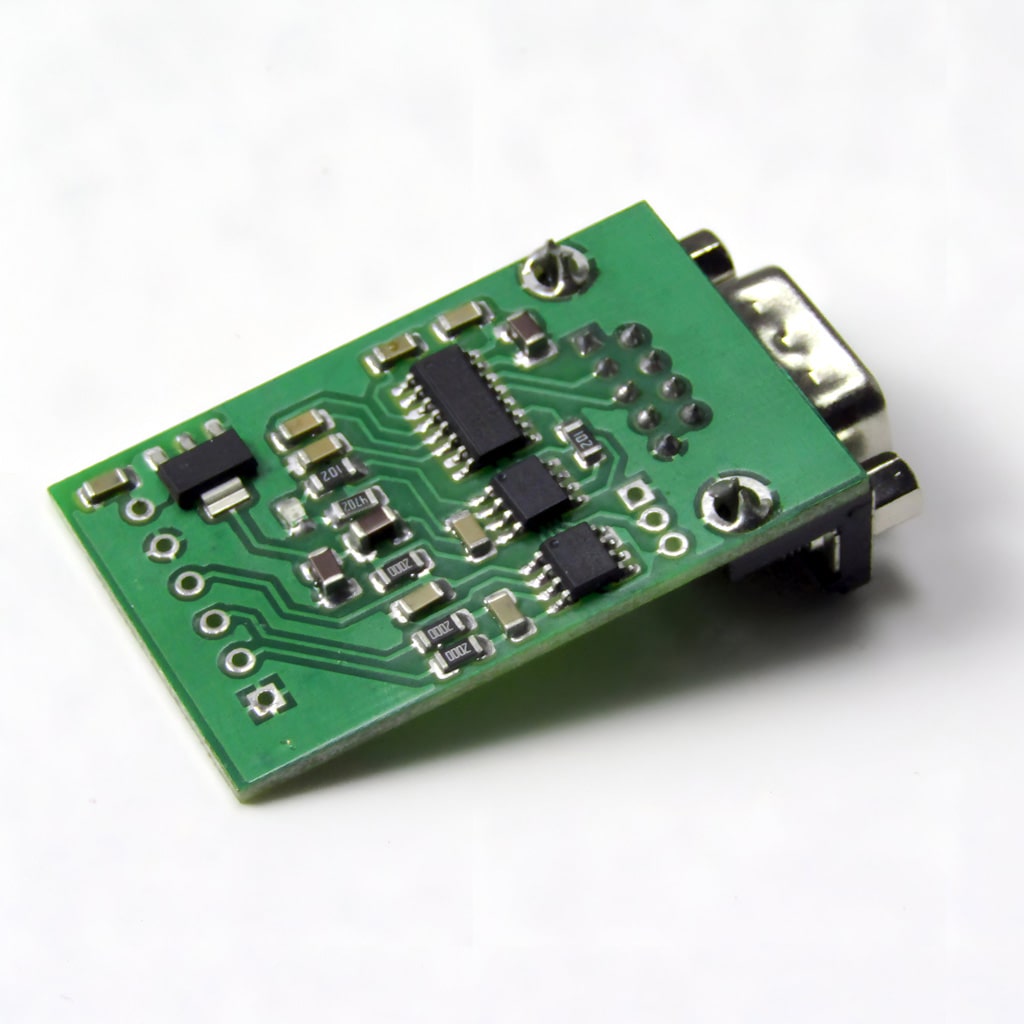

The Weight Measurement and Connectivity Module is a versatile product designed for various applications that require remote weight measurement. The module facilitates seamless connectivity with the HX710 weigh scale IC using RS232 through MAX232, providing a reliable and accurate solution for weight measurement. The microcontroller is based on the 8051 family, featuring a Megawin IC, ensuring robust performance and customization capabilities.
Application:
- Remote Weight Measurement:
- Agriculture: Weighing crops in the field.
- Logistics: Monitoring cargo weight during transportation.
- Industrial: Measuring weights in locations without direct access to power.
- Thickness Measurement:
- Construction: Measuring the thickness of building materials.
- Quality Control: Ensuring consistent thickness in manufacturing processes.
- Customized Load Cell Applications:
- Adaptable to various load cell configurations for specialized industries.
- Ideal for industries requiring specific weight measurement parameters.
Technical Specifications:
- Microcontroller: 8051 family-based Megawin IC
- Communication Interface: RS232 through MAX232
- Power Supply: 7-12v DC
- Operating Temperature Range: 5-60
- Dimensions: 55x35mm
- Firmware: Customizable for load cell configuration and measurement parameters
Warranty and Support
- Warranty: 1-year limited warranty
- Customer Support: 24/7 customer support via email and phone
