Description
Compact. Configurable. Connected.

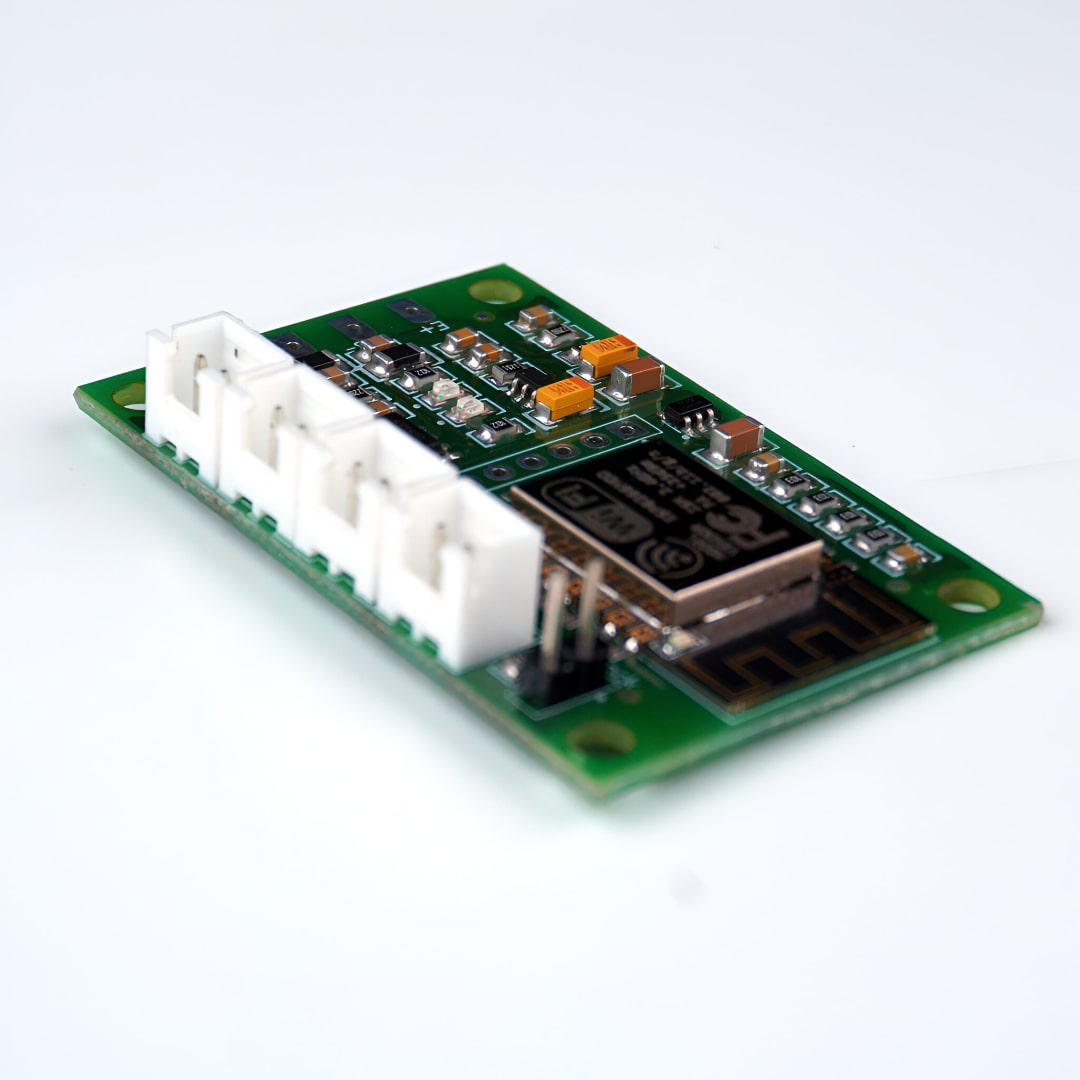

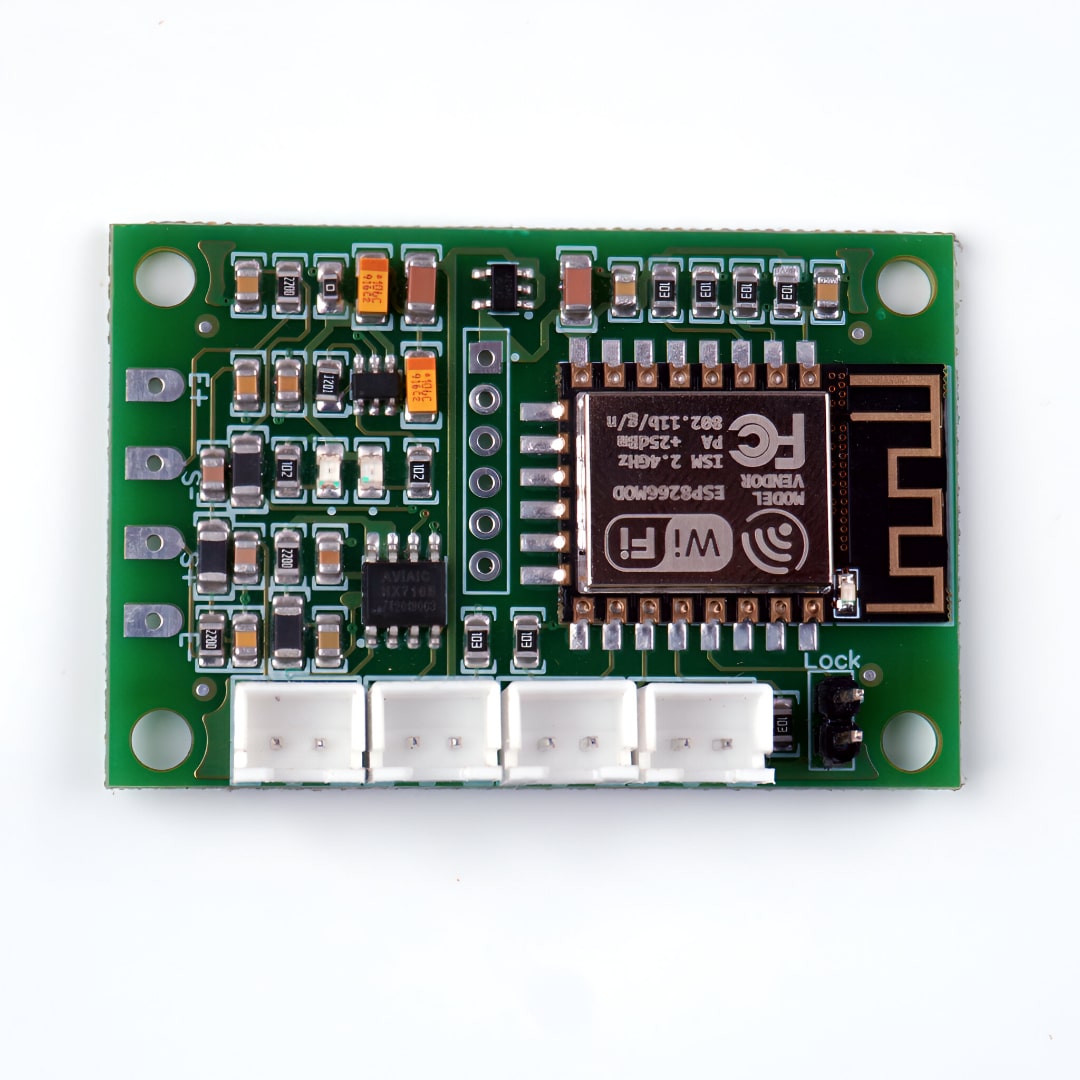

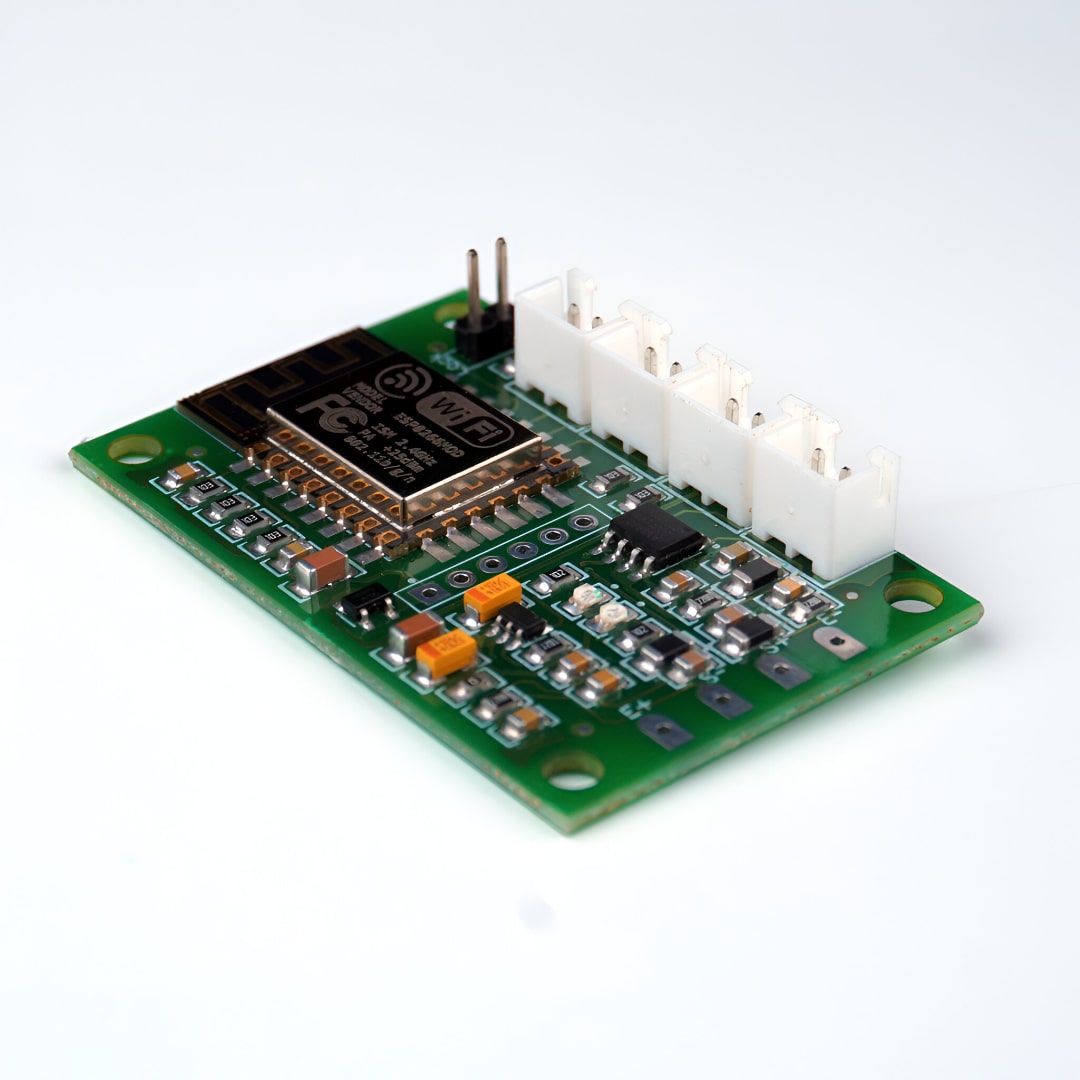

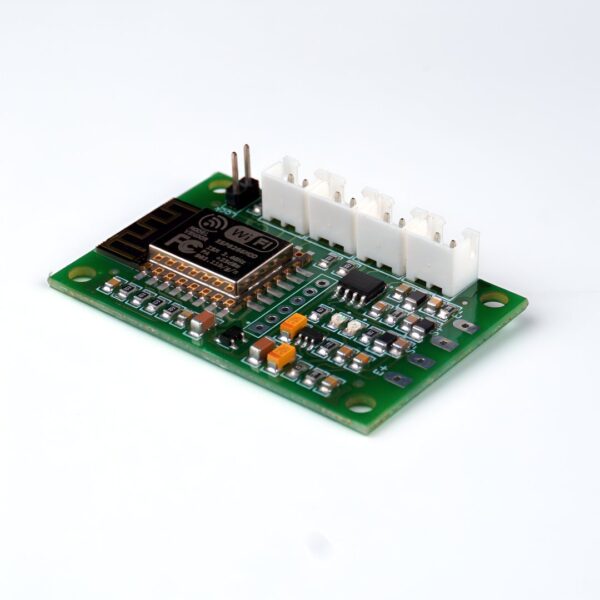

The Mini Smart Wi-Fi Serial Weigh Module is a powerful fusion of our advanced WiFi to Serial Converter and high-precision Weigh Scale System — now in a compact, display-less format ideal for embedded or headless applications.
With flexible connectivity and a user-friendly configuration interface, it is designed for seamless integration into existing systems like POS, kiosks, and industrial controllers.
Key Features
- Dual Data Input: Supports UART and Wi-Fi (socket) data input simultaneously.
- Tri-Mode Configuration: Configure through Web UI, Mobile App, or UART commands.
- Single Button Interface: Short press for TARE function & Long press (10 sec) to reset all configurations
- Highly Customizable: Set baud rate, packet handling (size, char, byte), and Wi-Fi modes.
- Built-in Battery Charging: Onboard Li-ion battery charger, supports 4.2V cells.
- Low Power Operation: Operates efficiently from a 5V supply.
Specifications
- Microcontroller: ESP8266 (Wi-Fi)
- Interfaces: UART, Wi-Fi Socket
- Configuration: Web App, Mobile App, UART
- Packet Modes: Size-based, character-based, byte-count
- Power Supply: 5V input with Li-ion 4.2V charging
- Dimensions: Similar to HC-05 module
- Button: 1x TARE/RESET multi-function
- Baud Rate: Up to 2MBps
- Cross-Platform: Windows, macOS, Linux, iOS, Android
- Dimensions: 34 mm x 52 mm (approximate)
Applications
- Smart POS Weighing Modules
- Industrial Automation Interfaces
- Headless Smart Weigh Scale Systems
- Wireless Sensor Gateways
- Custom Embedded Projects
This mini module offers all the power of a full-scale weighing or communication unit — without the bulk. Perfect for OEMs and developers looking to integrate smart connectivity in tight spaces.
For OEM inquiries, integration support, or bulk orders – contact us today!
Let’s build the future of smart weighing and communication together.
