Description

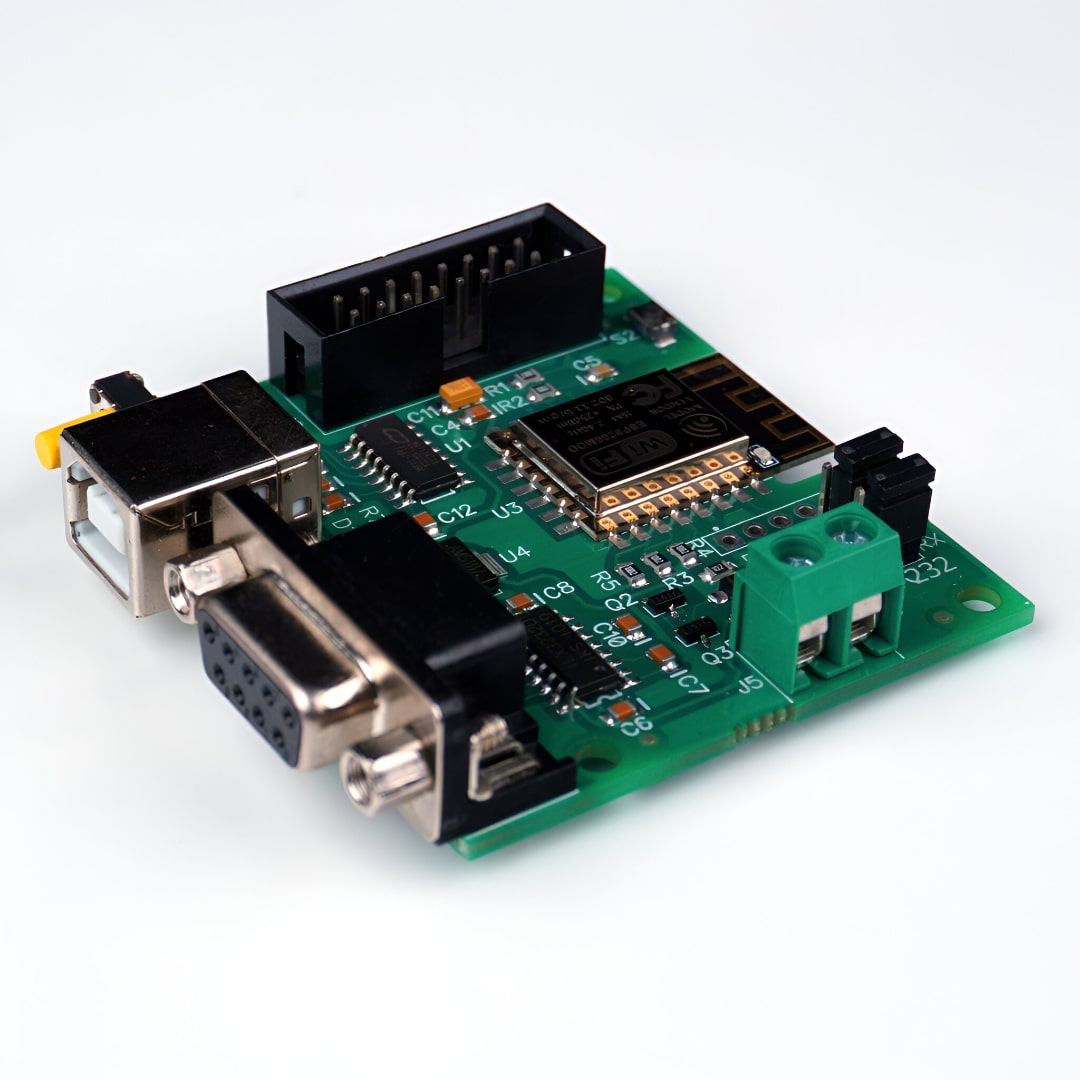

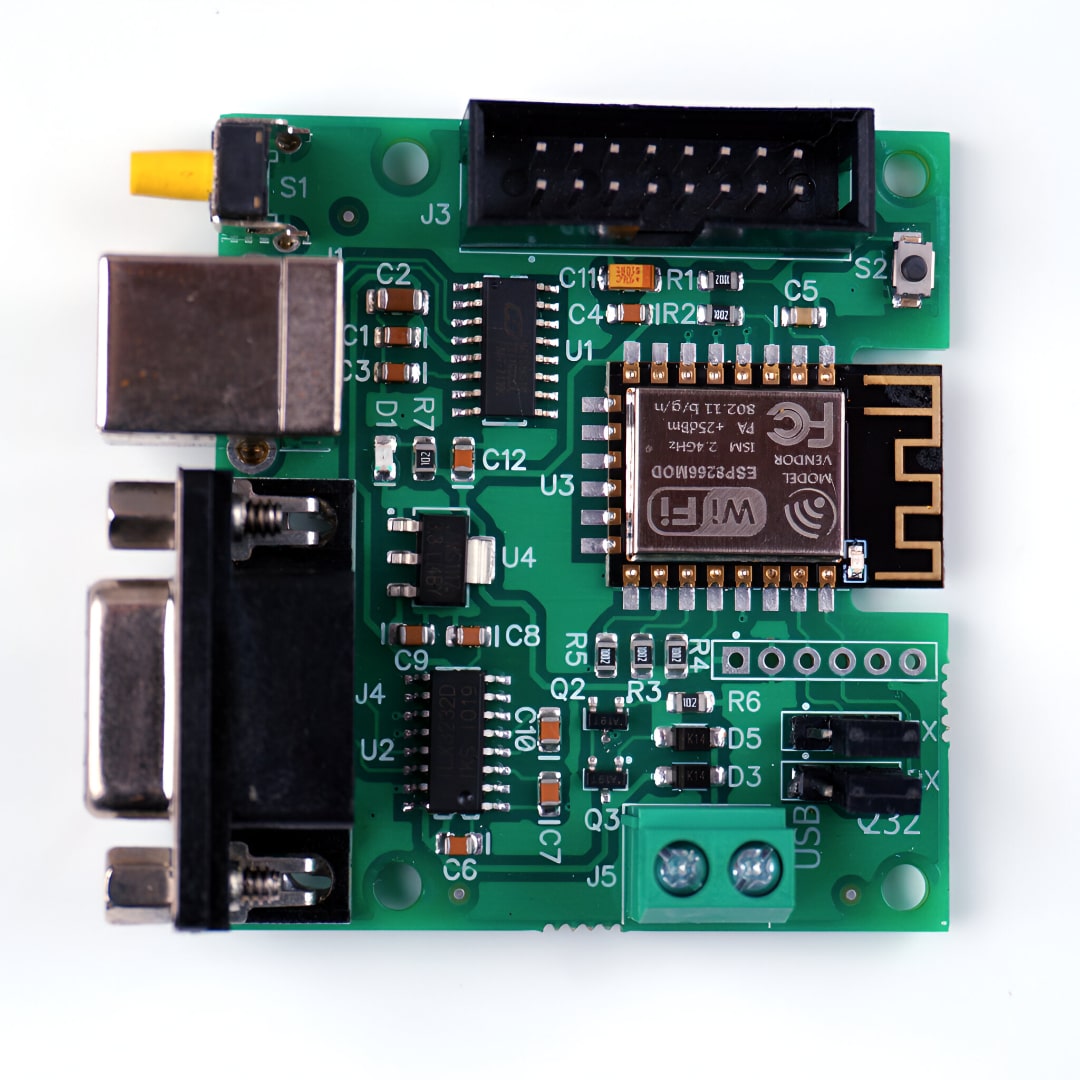

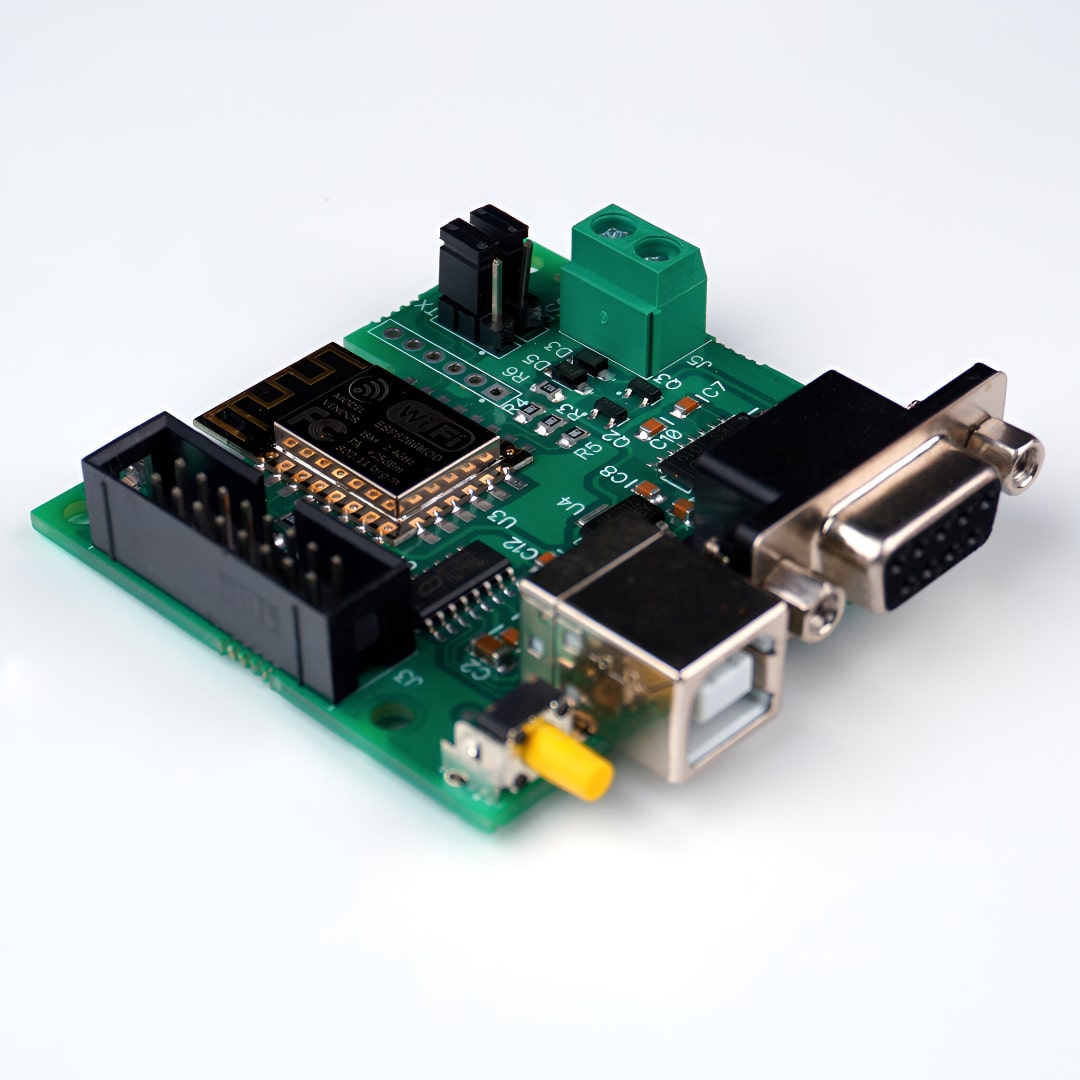

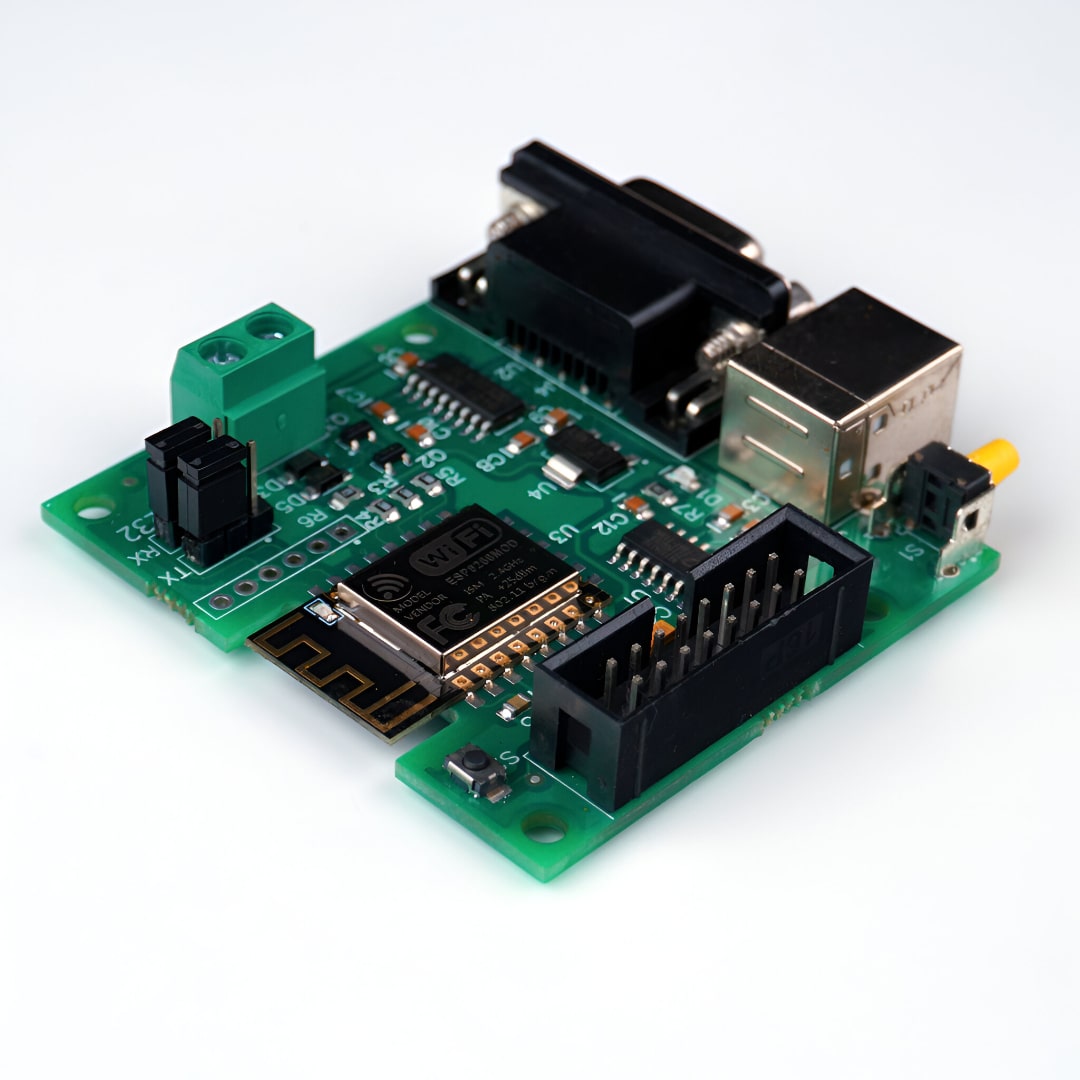

Advanced standalone solution designed for industrial data display and visualization. This controller supports real-time text display, including scrolling effects for extended messages, and is fully configurable through any web browser over WiFi. It simplifies the integration of P10 displays into industrial systems, making it an ideal choice for weigh scales, production monitoring, and other data-driven applications.
Key Features
P10 Dot Matrix Display Support
- Direct Drive Capability: Seamlessly drives 64×32 or larger single-color P10 dot matrix displays.
- Dynamic Scrolling: Automatically scrolls long messages, ensuring all content is visible.
- Customizable Display: Configure message content, scrolling speed, and display settings via a web interface.
WiFi-Based Configuration
- No App Required: Access and configure settings using any standard web browser on Windows, macOS, Linux, iOS, or Android.
- User-Friendly Interface: Modify text, scrolling parameters, and connectivity settings effortlessly over WiFi.
- Remote Control: Manage the display remotely without requiring physical access to the controller.
Industrial Design
- Real-Time Updates: Displays real-time data, such as sensor readings or weigh scale outputs, received via serial input.
- Serial Data Compatibility: Accepts input from RS232 or USB serial sources for reliable communication.
- Robust Performance: Designed to operate in industrial environments, ensuring durability and reliability.
Power Efficiency
- Operates on a 5V DC power supply, minimizing energy consumption while delivering high performance.
Specifications
- Display Type: P10 single-color dot matrix displays
- Scrolling Feature: Supported for extended messages
- WiFi Configuration: Browser-based, no app required
- Serial Input: RS232 or USB serial
- Power Supply: 5V DC
- Compatibility: Devices with browser interfaces (Windows, macOS, Linux, iOS, Android)
Applications
- Industrial Data Display: Real-time display of weigh scale outputs, production counts, or sensor readings.
- Remote Monitoring: Visualize critical data in warehouses, factories, and control rooms.
- Public Information Systems: Display announcements, alerts, and other information in public or industrial spaces.
