Made for P10 Display Applications
- Designed to control P10 display boards for information and message display
- Suitable for production units, weigh scales, and public display usage

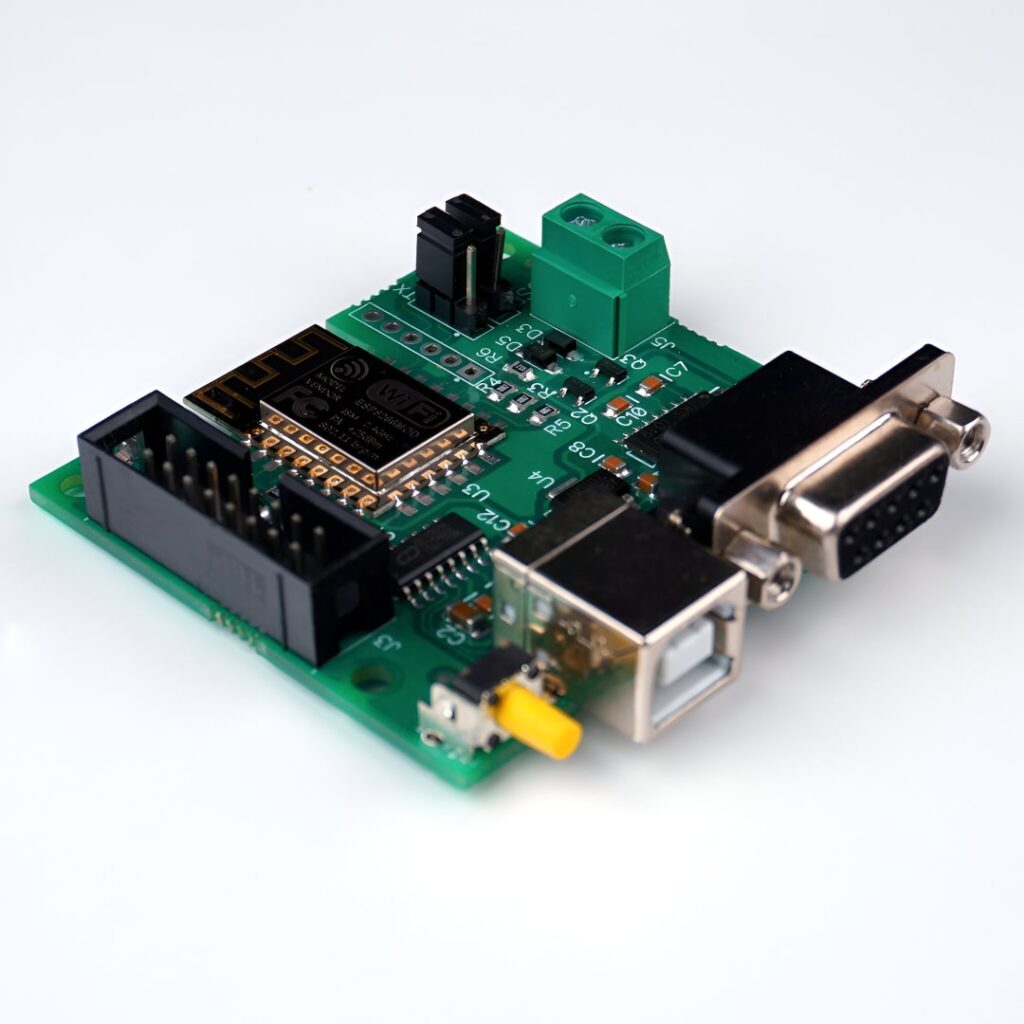

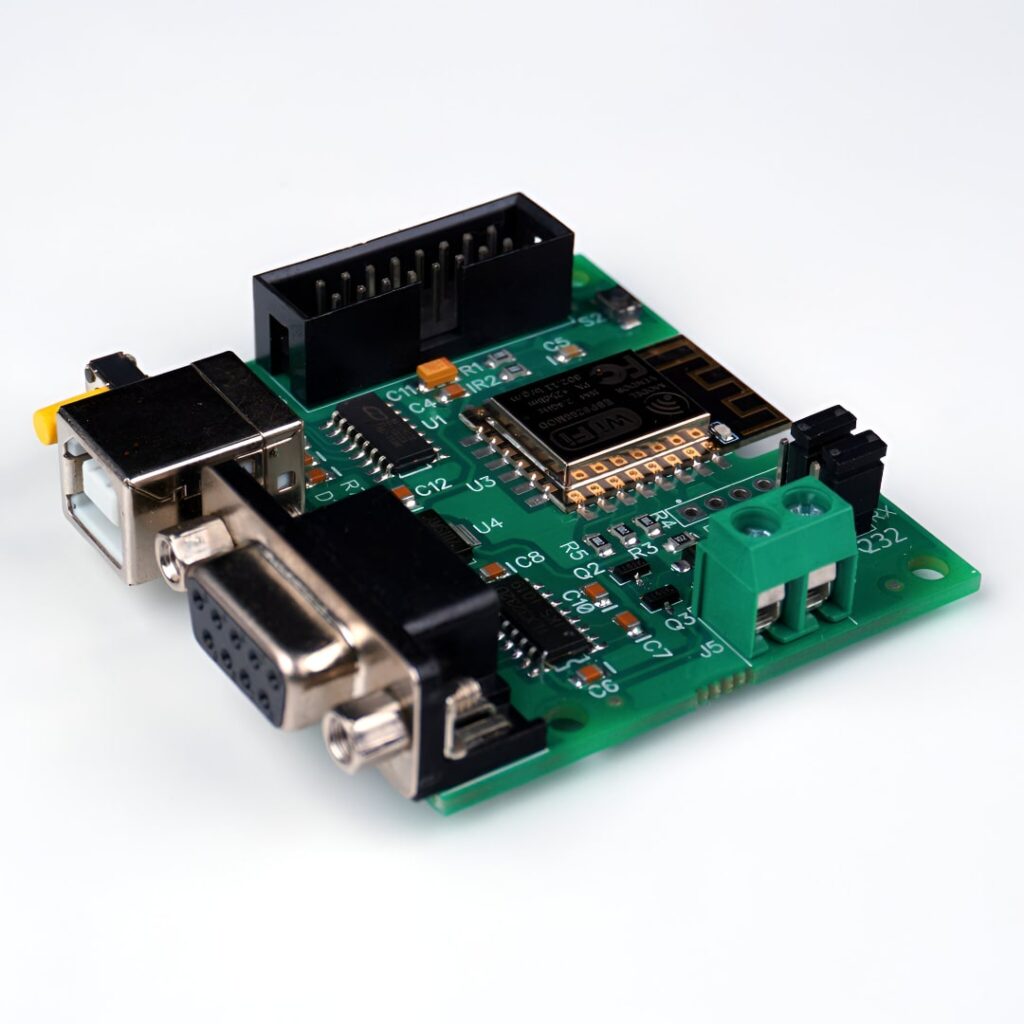

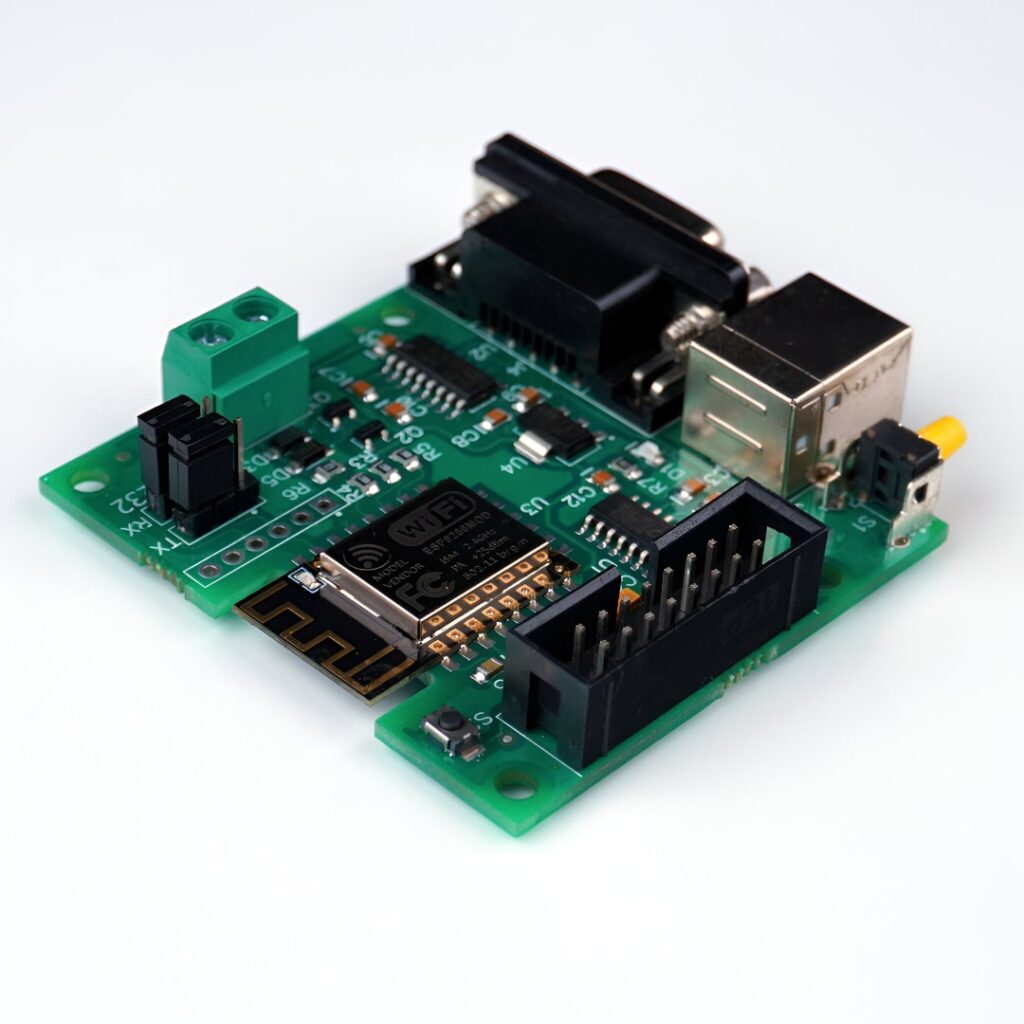

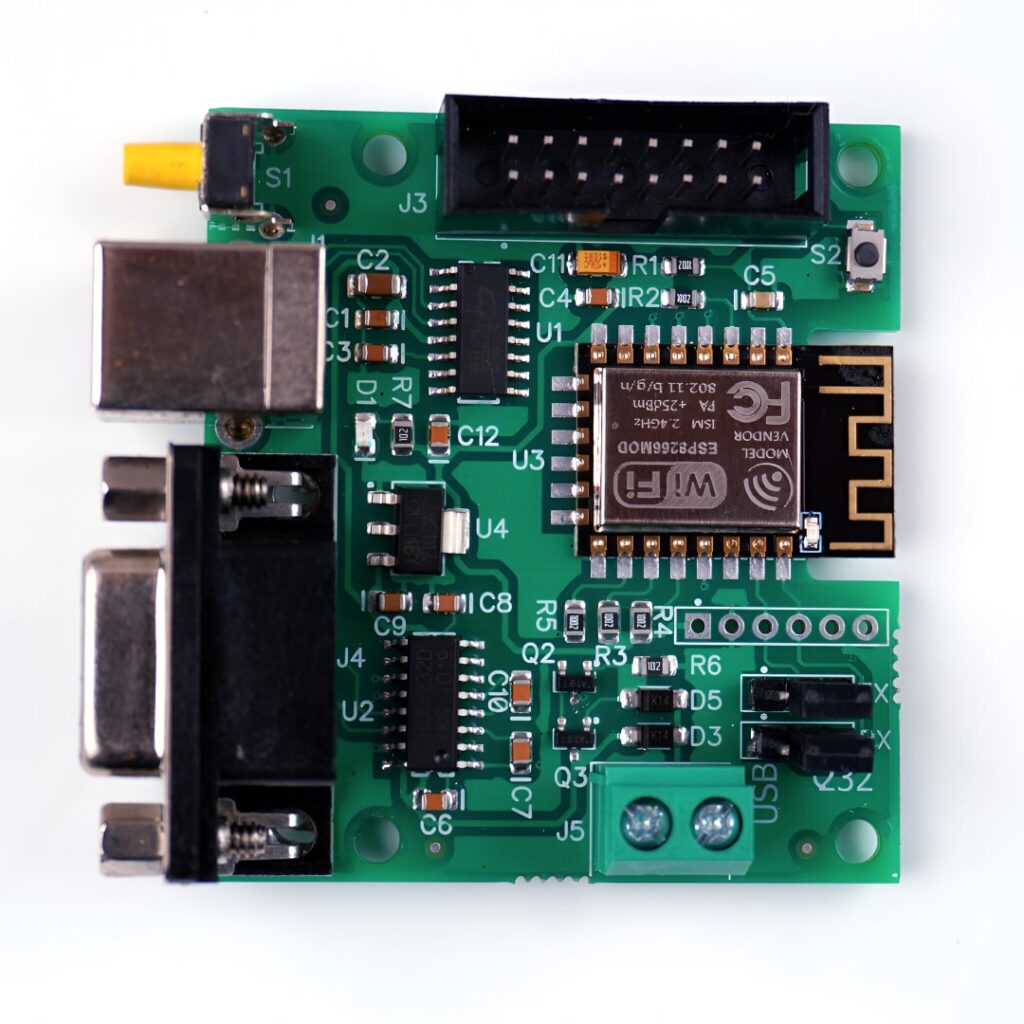

P10 Display Controller
Industrial P10 display controller; WiFi-based browser configuration. Supports RS232/USB, and easy integration for production, weigh scales, and public info
₹1,200.00
- Buy 5+ @ ₹1,100.00 / piece
- Buy 50+ @ ₹960.00 / piece
- Buy 100+ @ ₹840.00 / piece
- Buy 500+ @ ₹720.00 / piece
Get the Highlights
Supports Common Communication Options
- Works with RS232 and USB based communication setups
- Helps connect display systems with compatible machines and controllers
Easy WiFi-Based Configuration
- Supports browser-based setup through WiFi connection
- Makes display configuration simpler during installation and use
Why it stands out
Stands Out with Easier Configuration
- Unlike basic display controllers, this model offers WiFi browser-based setup
- Helps reduce setup difficulty during display installation and adjustment
More Practical for Mixed-System Use
- Useful where display data may come from serial or USB-based sources
- Gives better flexibility than single-interface display controllers
Better Fit for Industrial Display Needs
- Suitable for users who need display control in weighing, production, or public information systems
- Offers a more application-focused solution than general-purpose display boards
P10 Display Controller
Advanced standalone solution designed for industrial data display and visualization. This controller supports real-time text display, including scrolling effects for extended messages, and is fully configurable through any web browser over WiFi. It simplifies the integration of P10 displays into industrial systems, making it an ideal choice for weigh scales, production monitoring, and other data-driven applications.
Key Features
P10 Dot Matrix Display Support
- Direct Drive Capability: Seamlessly drives 64x16 or larger single-color P10 dot matrix displays.
- Dynamic Scrolling: Automatically scrolls long messages, ensuring all content is visible.
- Customizable Display: Configure message content, scrolling speed, and display settings via a web interface.
WiFi-Based Configuration
- No App Required: Access and configure settings using any standard web browser on Windows, macOS, Linux, iOS, or Android.
- User-Friendly Interface: Modify text, scrolling parameters, and connectivity settings effortlessly over WiFi.
- Remote Control: Manage the display remotely without requiring physical access to the controller.
Industrial Design
- Real-Time Updates: Displays real-time data, such as sensor readings or weigh scale outputs, received via serial input.
- Serial Data Compatibility: Accepts input from RS232 or USB serial sources for reliable communication.
- Robust Performance: Designed to operate in industrial environments, ensuring durability and reliability.
Power Efficiency
- Operates on a 5V DC power supply, minimizing energy consumption while delivering high performance.
Specifications
- Display Type: P10 single-color dot matrix displays
- Scrolling Feature: Supported for extended messages
- WiFi Configuration: Browser-based, no app required
- Serial Input: RS232 or USB serial
- Power Supply: 5V DC
- Compatibility: Devices with browser interfaces (Windows, macOS, Linux, iOS, Android)
- Dimensions: 57 mm x 52 mm
Applications
- Industrial Data Display: Real-time display of weigh scale outputs, production counts, or sensor readings.
- Remote Monitoring: Visualize critical data in warehouses, factories, and control rooms.
- Public Information Systems: Display announcements, alerts, and other information in public or industrial spaces.
